ACRYLIC/PMMA/PC Sheet Production Line
ACRYLIC/PMMA/PC Sheet Production Line

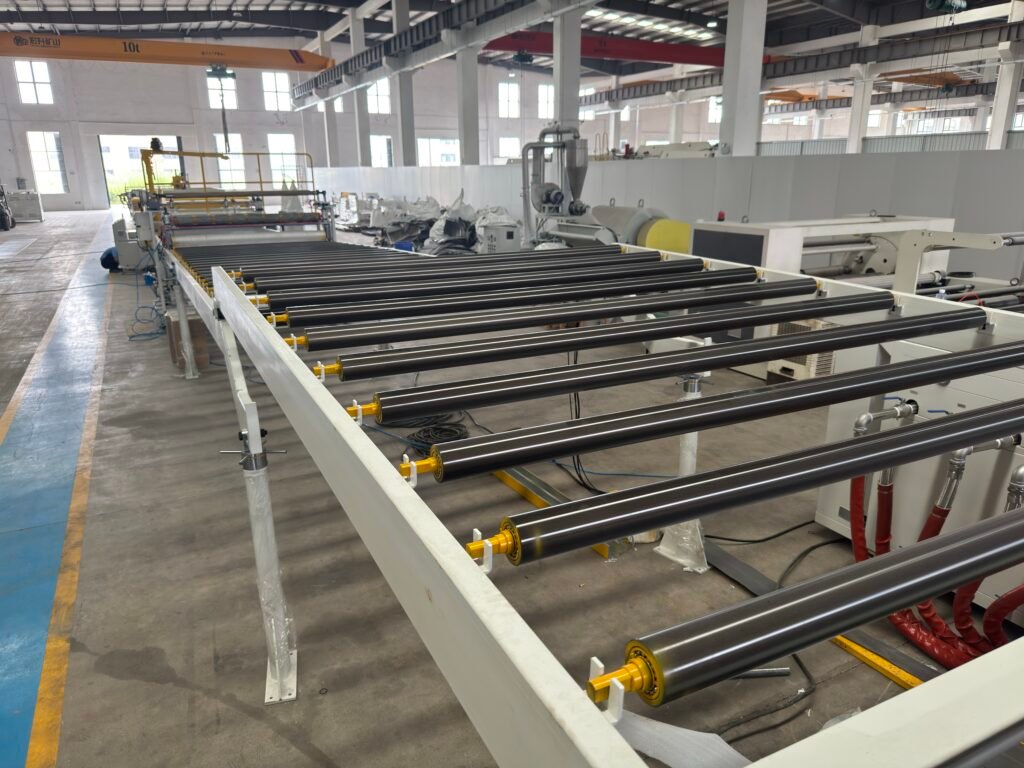

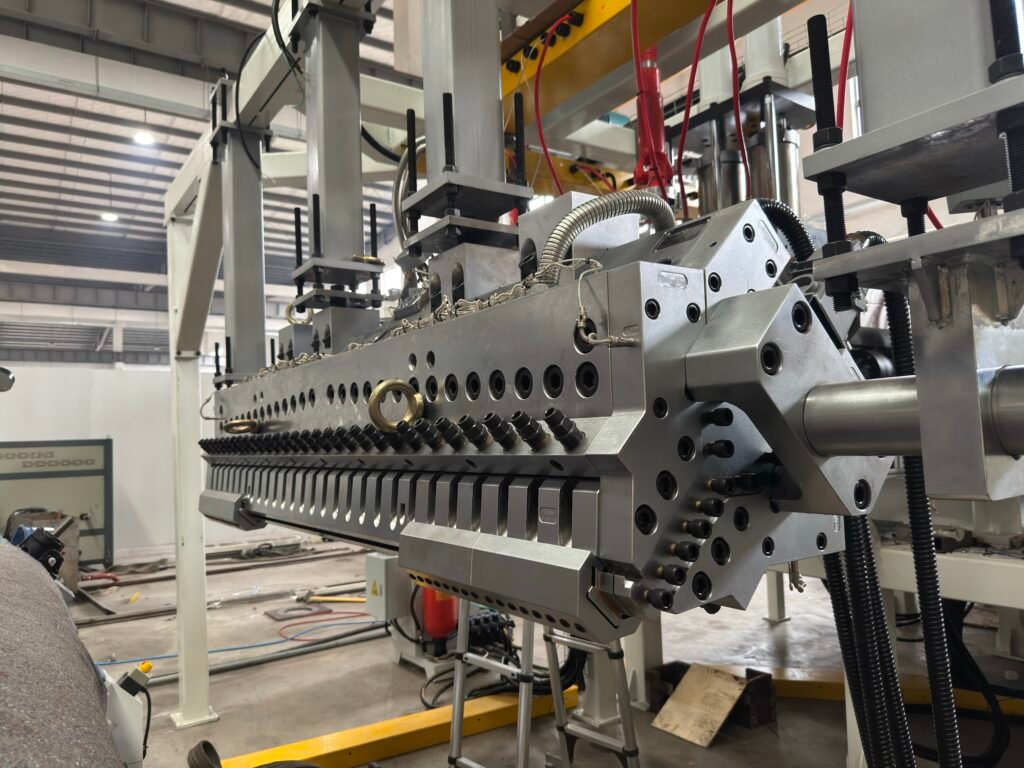

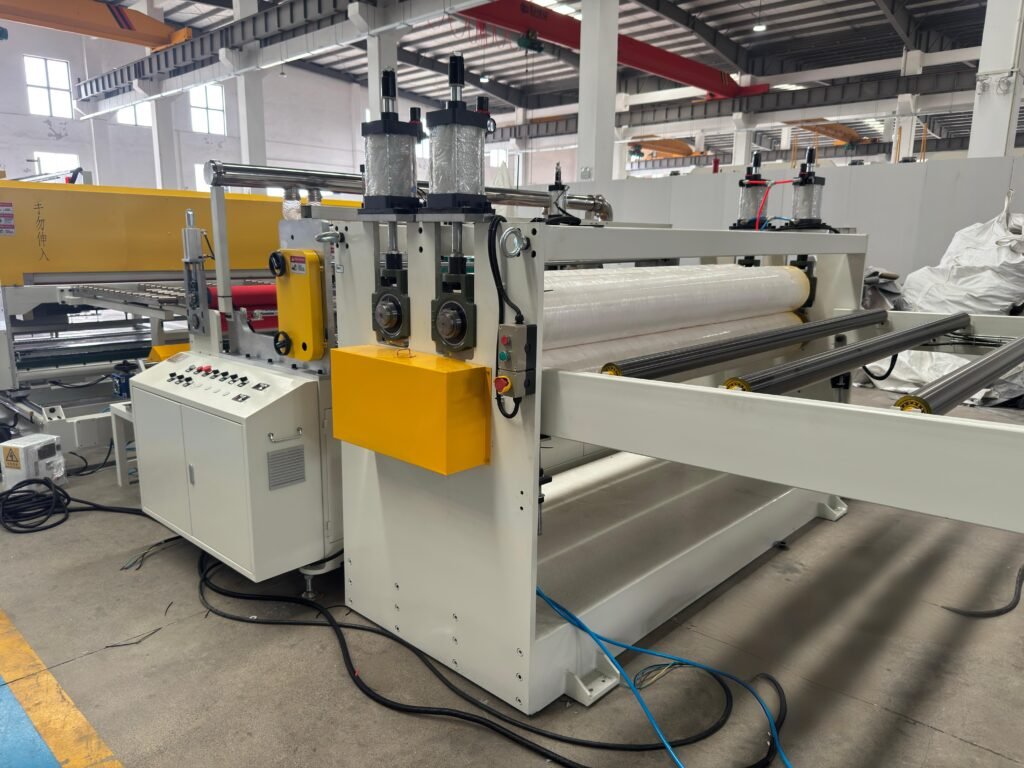

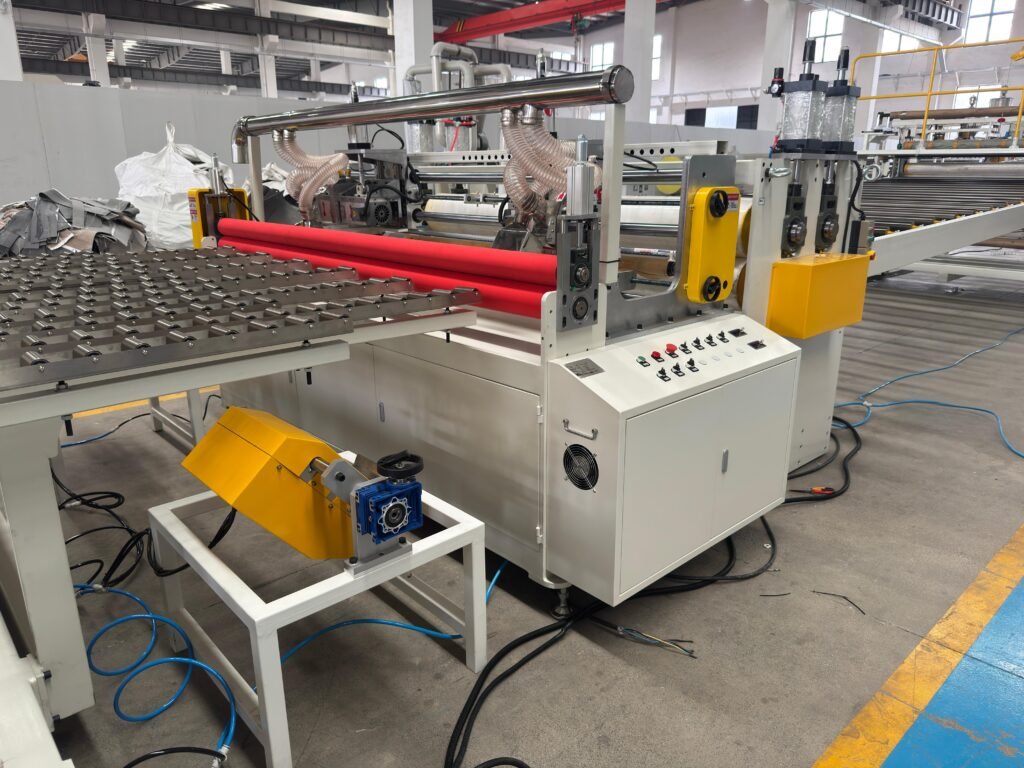

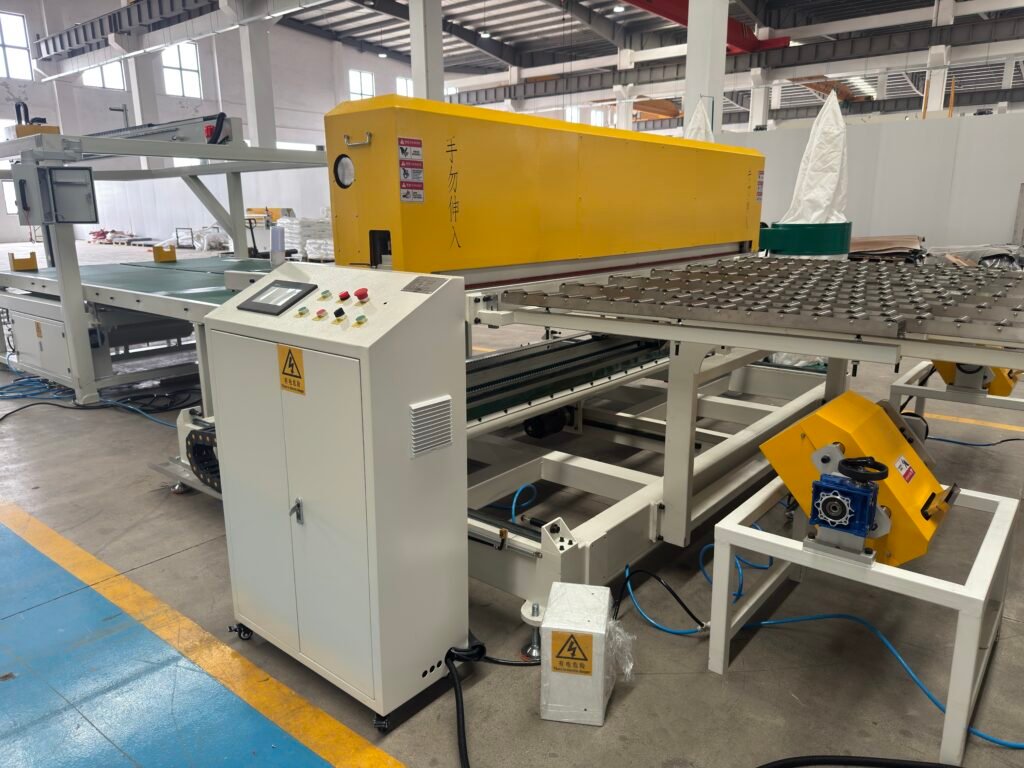

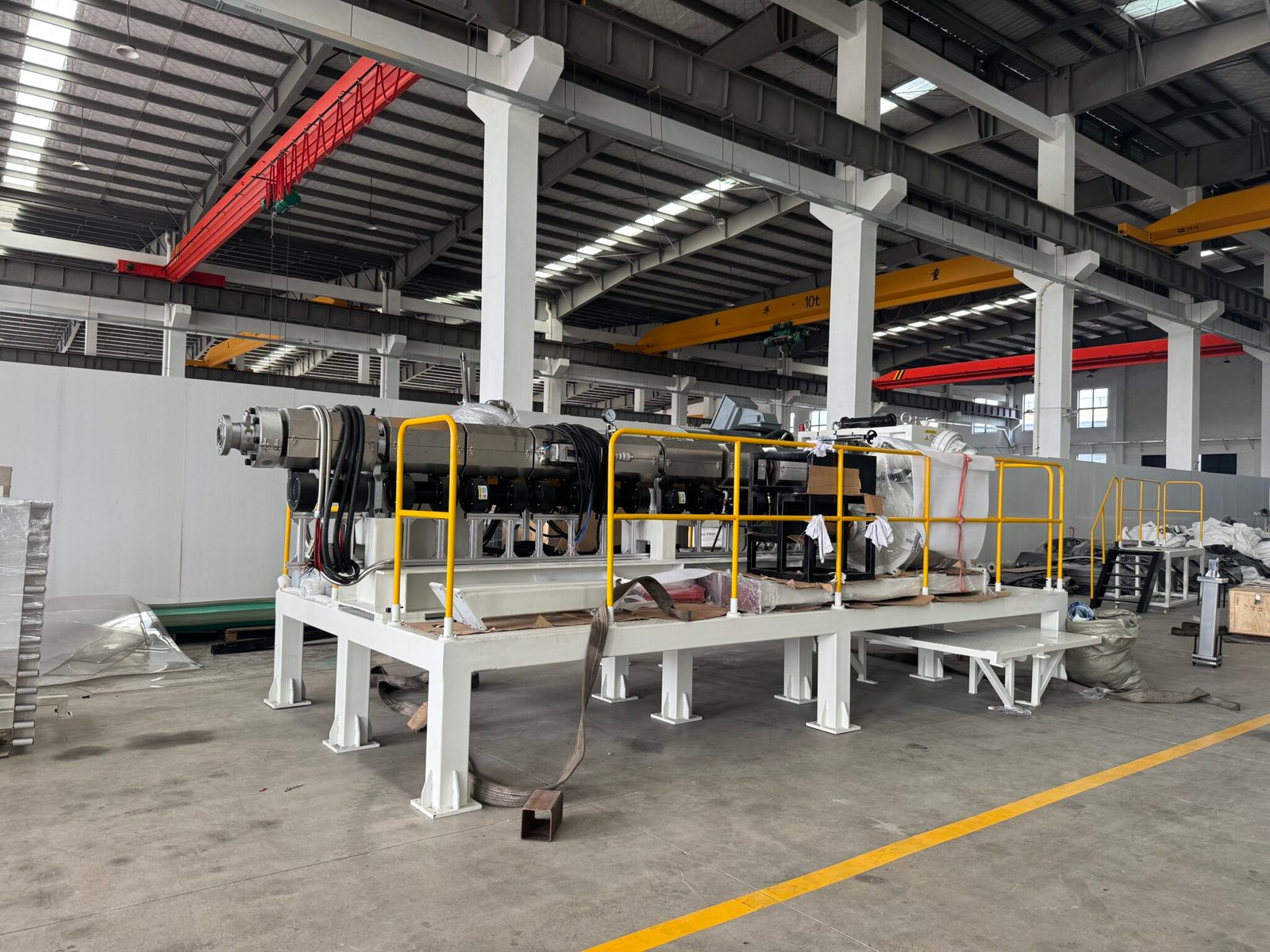

The Acrylic/PC sheet production line continuously manufactures high-quality Acrylic/PC sheets. PMMA/PC granules are melted and plasticized by the single-screw extruder, extruded through the T-die, then calendered, cooled, hauled off, and cut by the high-precision cutting system to produce high-gloss, flat Acrylic/PC sheets.
Features:
- Uniform plasticization, tight thickness tolerance, bubble & scratch-free sheet with high light transmittance.

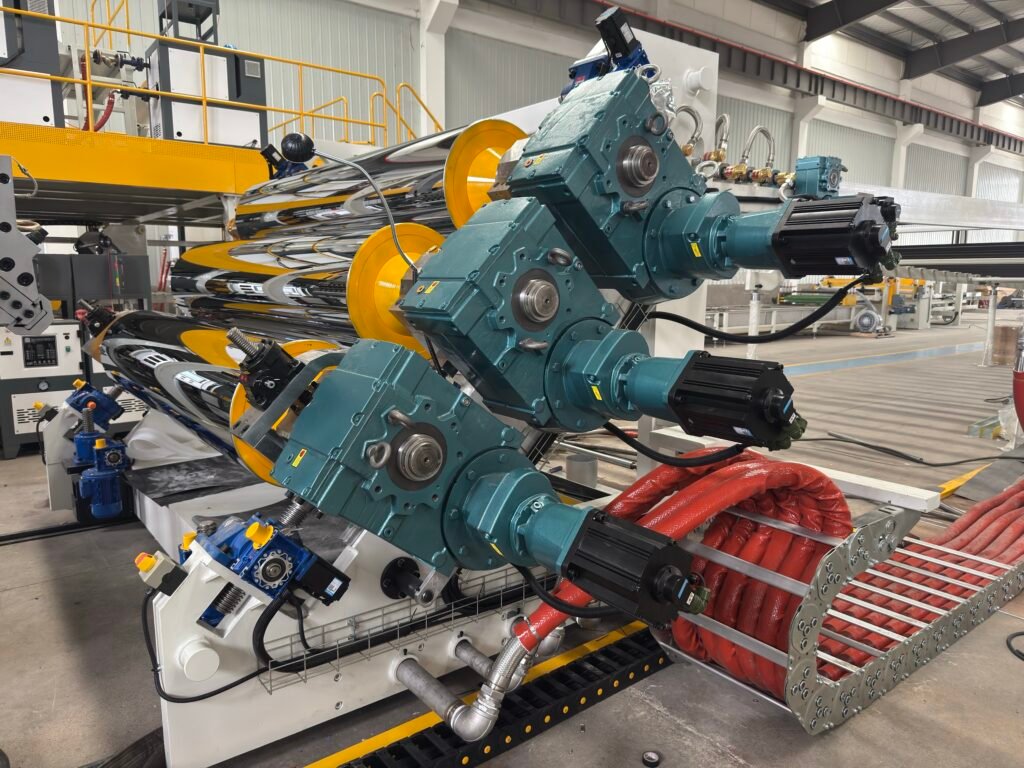

- Three rollers with a high-precision mirror finish. Independent temperature control and drive, or synchronous control.
- Thickness: 0.8 – 8 mm, customizable width; available in transparent, frosted, and colored types.
- Automatic feeding, melt pressure monitoring, and fixed-length cutting; easy operation.
- Durable key components, low maintenance cost.
Details of ACRYLIC/PMMA Sheet Production Line
Production Line Technical Parameters
| Model | 130/38 |
|---|---|
| Thickness (mm) | 0.8-8 |
| T‑die Width (mm) | 1350 |
| Extruder Motor (KW) | 200 |
| Capacity (Ton/24hrs) | 12 Tons/24hrs |
Production Line FAQ
What is the process of Acrylic/PMMA Sheet production line??

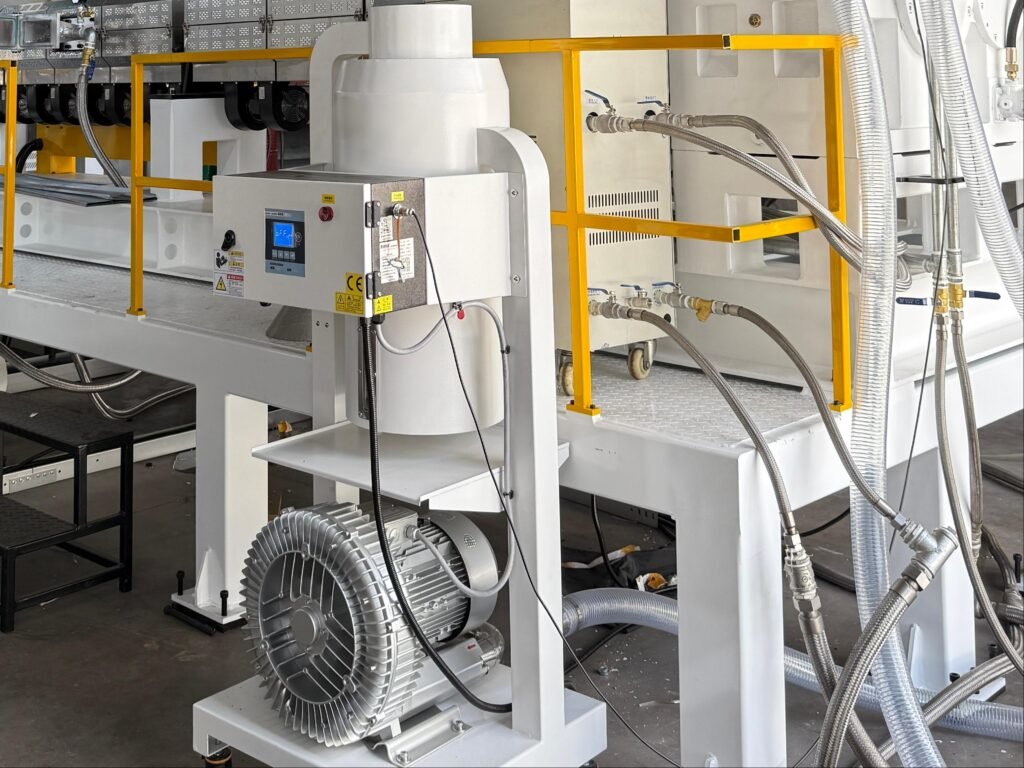

- Vacuum Loading
- Extrusion
- UV Coating
What types of materials are used in the Acrylic/PMMA Sheet production line?
- PMMA granular
- Masterbatch (optional)
What are common consumables used in Acrylic/PMMA Sheet production lines?
- Screw Barrel
- Screw Barrel heater
- T-Die heater

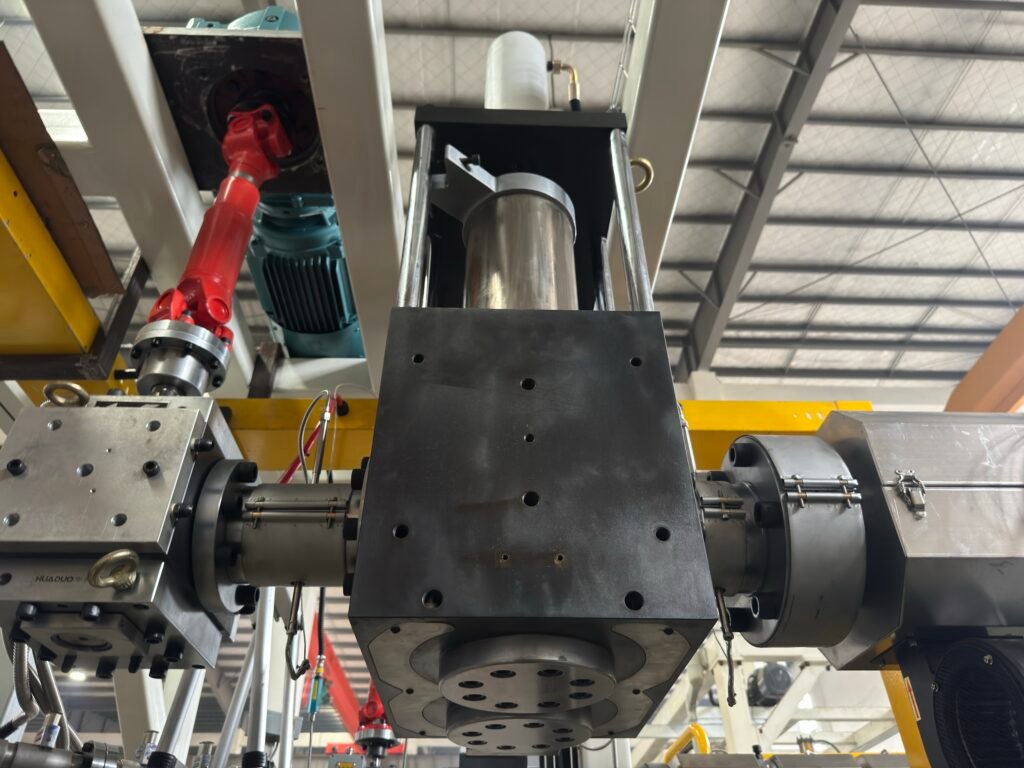

- Screen Changer Mesh
- Thermocouple
- Others…
How often should Acrylic/PMMA Sheet production line be maintained?
- We recommend reserving at least 2-3 days each month for maintenance.
What is the warranty period for Acrylic/PMMA Sheet production line?
- 1 Year for the full production line
Why Choose MAISHCK Machine?
- MAISHCK provides complete turnkey projects, offering comprehensive customized services based on customer project needs.
- For new customers to the industry, we will design a complete solution for the customer before the sale and provide installation, training, testing, and other after-sales services.
- We have a professional after-sales team that can promptly resolve problems our customers encounter during the production process.
- We have many customer cases, and welcome to visit our factory and view our domestic customer case.
